SIRE 2.0 BYOD Android Setup

Follow these direction to prepare a new or existing i.Safe tablet for SIRE 2.0. During this process you will load applications from the Google Play Store. For devices currently managed by OCIMF, you will have to reset it, and then the setup process will be the same as a new device.

In all cases it is important to make sure the tablet is fully charged and connected to a power source using the supplied cable through the entire process. This step-by-step guide will help you through this process because there will be a few choices, but in most cases, you should accept the default.

If you have a new device proceed to “Tablet Setup”

Resetting an OCIMF Managed Tablet

To use the tablet outside of the Managed Desktop you will need to reset that device to the default, and everything on it will be wiped.

Before you start the reset process:

1. Ensure you have good Wi-Fi connectivity
2. Confirm that all inspections on your device have been submitted.
3. Decide if you want to use an existing Google account (e.g., Gmail), and if so be sure to have your credentials ready.

Follow these steps to wipe the device:

1. Start the tablet, it will be locked
2. Enter “0000” as the PIN ten times, after the fifth attempt it will prompt you to wait 15 seconds before you can continue entering the “0000” PIN
3. After the sixth attempt another warning will be displayed alerting you that after four more unsuccessful attempts it will reset and delete all of the data – you will have tap “Ok”
4. Warning will continue until the tenth attempt, the screen will go blank until the i.safe screen appears and the wiping process starts.
5. Be patient and allow the process to finish, when it displays the welcome screen.

Tablet Setup

1. Switch on your tablet using power on the button on the side of the tablet (IS940.1) or on the front of the tablet (IS930.1). When it boots up, you're shown a “Hi there” screen, the language and Vision settings and a button marked “Start”. Ensure the language is set to English; it might already set. If it isn't, tap the “globe” and then chose it. Once all set tap the blue “Next” button in the bottom right corner of the screen. Tap the blue “Start” button.

       2. On the next screen, you will be prompted to Connect to mobile network. Tap “Skip”

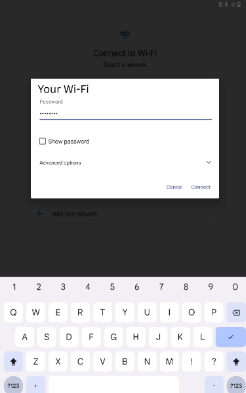

        3. The tablet then scans for local Wi-Fi networks. Your Wi-Fi should appear on this screen. When it does, tap it. Enter your passcode, and leave the Auto Reconnect switched on, before tapping the “Connect”           button. When your tablet has successfully connected, the Wi-Fi icon appears at the top of the screen, and the network List shows which one you're currently connected to. Now tap the “Next” button (bottom right).

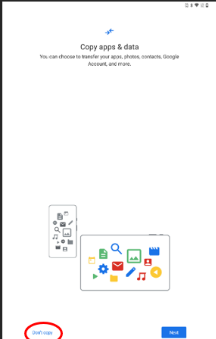

          4. The tablet then takes a few minutes to get itself set up, before it prompts you to “Copy Apps and Data from your existing tablet”. Tap “Don't Copy”.

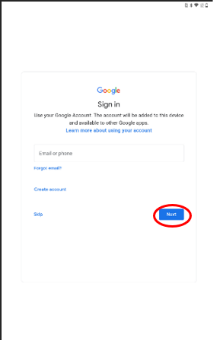

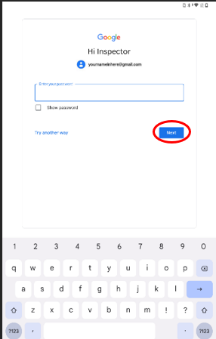

           5. Next, you must sign into your Google account. If you don't have one, tap “Create Account”. If you do, enter your Google credentials; tap “Next”, then the password; tap “Next” again.

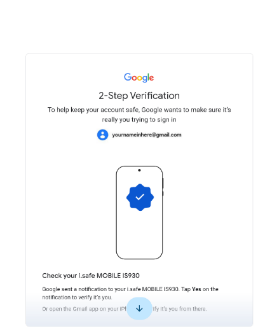

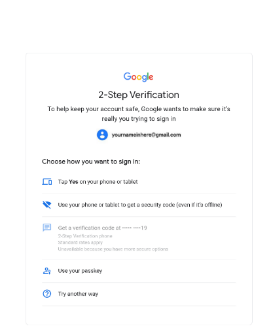

             6. You may be asked to verify that it's actually you who's trying to log in. If so, open the Google app on one of the devices listed and follow the steps to confirm. If you can't, tap “Try Another Way” and follow the on-screen instructions.

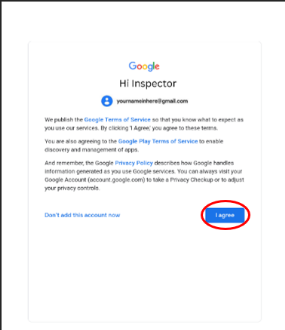

              7. To continue, you must review and agree to the End User Licence Agreement and the privacy settings.  When done go ahead and tap “I agree”.

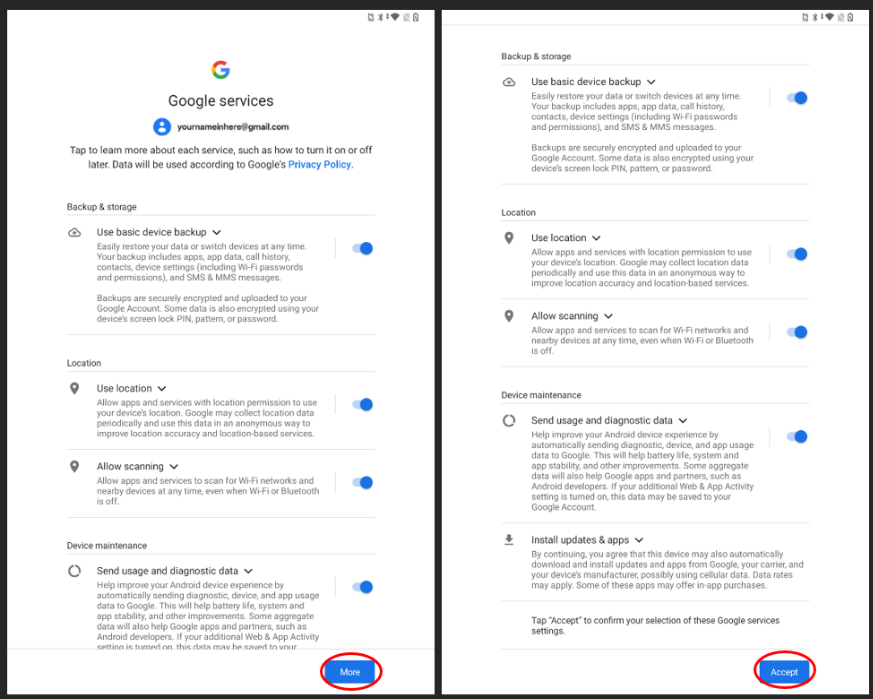

               8. Now it's time to set permissions for Android apps and Google services. You must now decide on a series of options, such as backing up Google Drive and sending usage and diagnostic data. Make your choices, tap “More”, and make some more choices before tapping “Accept”.

               9. Next, OCIMF requires the device to have a PIN. Set it up by following the on-screen instructions.

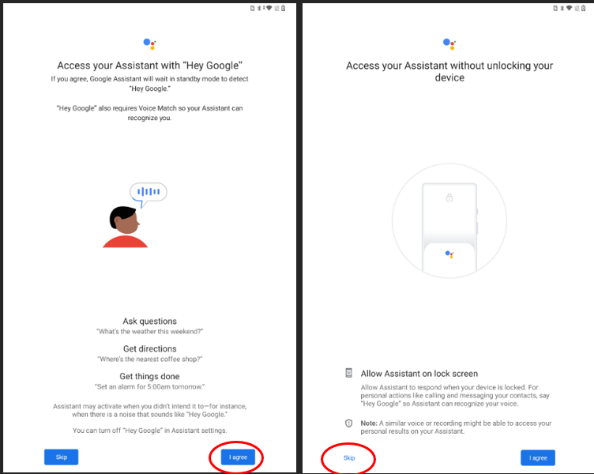

               10. The next is to tap “I Agree” to accept the “Hey Google” terms and conditions. You can tap the Skip button if you don’t wish to set.

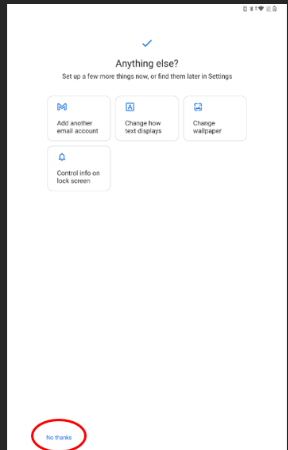

                 11. Next, the tablet will move to the Anything else page where you can choose to setup a few more things such as adding a new email account, changing how text displays, changing wallpaper, or control info on the lock screen. If you wish to find them later in settings tap “No thanks”

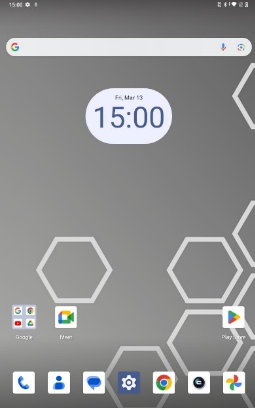

                  12. You're done! Tap the “Finish” button to go straight to the tablet's desktop and start using your SIRE 2.0 Android device.

Loading the Required Applications

1. Next steps will show you how to load:
   1. The OCIMF SIRE Inspection Tool application
   2. The Mopria Print Services application
   3. The TeamViewer QuickSupport application (not the Host application)
   4. An Antivirus of your choice (e.g., Avast Antivirus & Security)

How to Install the OCIMF SIRE Inspection Tool

1. On your tablet, tap the Play Store icon. The main Play Store screen opens.
2. Tap the search bar at the top of the screen. Type “OCIMF SIRE Inspection Tool”. Results will appear showing the official app published by OCIMF.
3. Look for the list with the name OCIMF SIRE Inspection Tool. Tap the app to open its information page, where you can view screenshots, descriptions, version details, and permissions.
4. On the app info page, tap the Install button.
5. Android may show a list of required permissions (e.g., camera, storage, network). Tap Accept or Allow when prompted.
6. Wait for the Installation to Complete. The device will automatically download and install the app. Once finished, the button changes from Install to Open.
7. To open the OCIMF SIRE Inspection Tool, Tap Open on the Play Store page or launch it later from your app drawer.

You can now begin using the SIRE 2.0 questionnaire and vessel documentation tools.

How to Install the Mopria Application

1. On your tablet, tap the Play Store icon. The main Play Store screen opens.
2. Tap the search bar at the top of the screen. Type “Mopria”. Results will appear showing the official app published by Mopria Alliance.
3. Look for the listing with the name Mopria Print Services. Tap the app to open its information page, where you can view screenshots, descriptions, version details, and permissions.
4. On the app info page, tap the Install button. Wait for the Installation to Complete.
5. The device will automatically download and install the app. Once finished, the button changes from Install to Open.
6. To open the Mopria App, Tap Open on the Play Store page or launch it later from your app drawer.
7. Android will prompt you to allow notifications. Tap Accept or Allow when prompted.

You can now begin using Mopria app to print the Observation Declaration while onboard.

How to Install the TeamViewer QuickSupport Application

Important: Do not install TeamViewer Remote Control.

1. On your tablet, tap the Play Store icon. The main Play Store screen opens.
2. Tap the search bar at the top of the screen. Type “TeamViewer QuickSupport”. Results will appear showing the official app published by TeamViewer.
3. Look for the list with the name TeamViewer QuickSupport. Tap the app to open its information page, where you can view screenshots, descriptions, version details, and permissions.
4. On the app info page, tap the Install button. Wait for the Installation to Complete.
5. The device will automatically download and install the app. Once finished, the button changes from Install to Open.
6. To open the TeamViewer App, Tap Open on the Play Store page or launch it later from your app drawer.
7. Android will prompt you to allow notifications. Tap Accept or Allow when prompted.

When working with the support desk, you will open this application and provide the support desk with your QuickSupport ID displayed by the application

How to Install an Antivirus Application

1. Important: Do not install TeamViewer Remote Control.
2. On your tablet, tap the Play Store icon. The main Play Store screen opens.
3. Tap the search bar at the top of the screen. Type “Antivirus”. Results will appear showing various brands of antiviruses.
4. Look for your antivirus of choice. Tap the app to open its information page, where you can view screenshots, descriptions, version details, and permissions.
5. On the app info page, tap the Install button. Wait for the Installation to Complete.
6. The device will automatically download and install the app. Once finished, the button changes from Install to Open.
7. To open the Antivirus App, Tap Open on the Play Store page or launch it later from your app drawer.
8. Android will prompt you to allow notifications. Tap Accept or Allow when prompted.

You will now be in compliance with the OCIMF inspector agreement.
